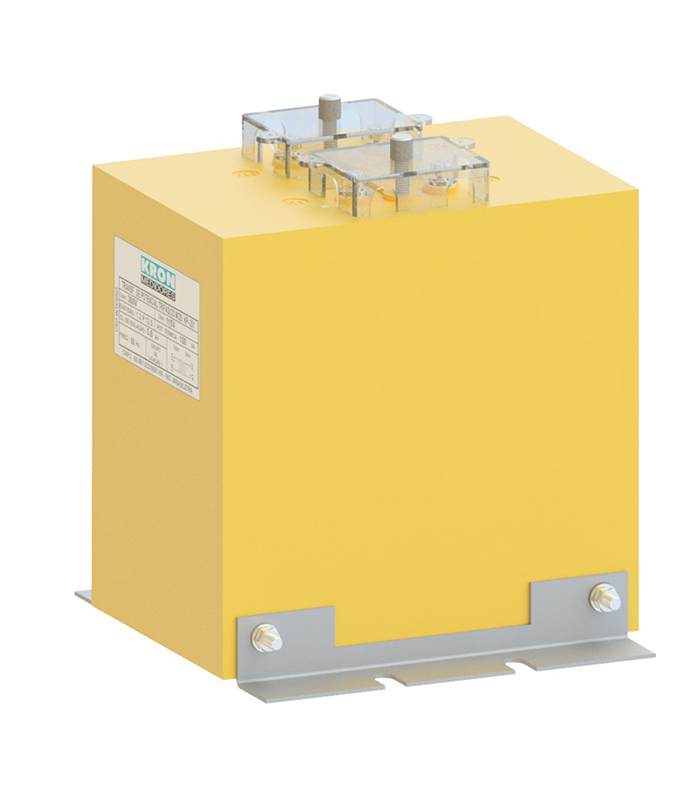

KP 401

The KP 401 is a voltage transformer, epoxy, for measurement in low voltage (0.72kV). Primary Voltage: 110V, 220V, 380V, or 480V. Secondary voltage: 110V, 115V or 220V according to the model and Max Thermal OutPut 400VA. Product dimension: 160 x 160 x 110mm. Accuracy class of 0.6% or 1.2% and a maximum Burden of 25 or 75VA.

For further information, see the product datasheet and Transformers Catalog.
