Transformers | Current - Measurement | Epoxy
KR 1780 (V or H)

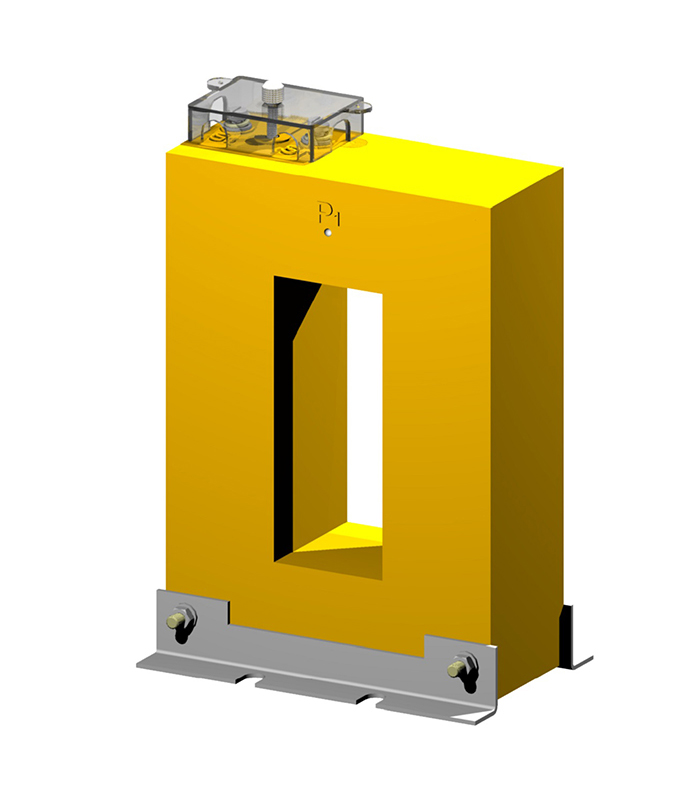

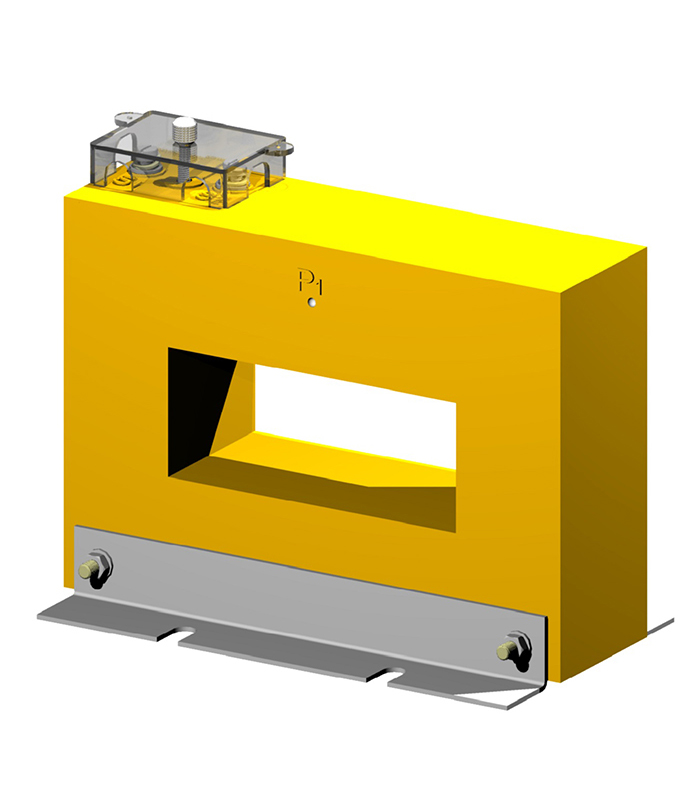

The KR 1780 is a current transformer, epoxy window type for measurement, for low voltage (0.72kV), with vertical and horizontal positions. Primary current: 600A to 6,000A according to the model. Product dimension: 165 x 260 x 50mm. Window dimension: 170x80mm. Accuracy class of 0.3% and a maximum Burden of 25VA.
For further information, see the product datasheet and Transformers Catalog.
- Measurement
- Primary Current: 50 -> 800A
- Window Diameter: 30 or 60mm
- Window: 41X11 or 65x30mm
- Dimension: 122 x 129 x 70mm
- Accuracy Class: 1.2%, 0.6% or 0.3%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 50 -> 600A
- Window Diameter: 24mm
- Dimension: 67.5 x 82.5 x 30mm
- Accuracy Class: 0.6% | 1.2% | 3.0%
- Maximum Burden (VA) 5
- Measurement
- Primary Current: 400 -> 2,500A
- Window Diameter: 51mm
- Window: 81x13 | 76,5x19 | 60x30mm
- Dimension: 131 x 145 x 46mm
- Accuracy Class: 0.3%, 0.6%
- Maximum Burden (VA) 12.5
- Measurement
- Primary Current: 500 -> 2,500A
- Window Diameter: 85mm
- Dimension: 130 x 166 x 40mm
- Accuracy Class: 0.6%, 0.3%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 800 -> 4,000A
- Window Diameter: 90mm
- Window: 105x50mm
- Dimension: 188 x 191 x 45mm
- Accuracy Class: 0.3%
- Maximum Burden 12.5VA
