Transformers | Voltage Transformer | Control

KPDC

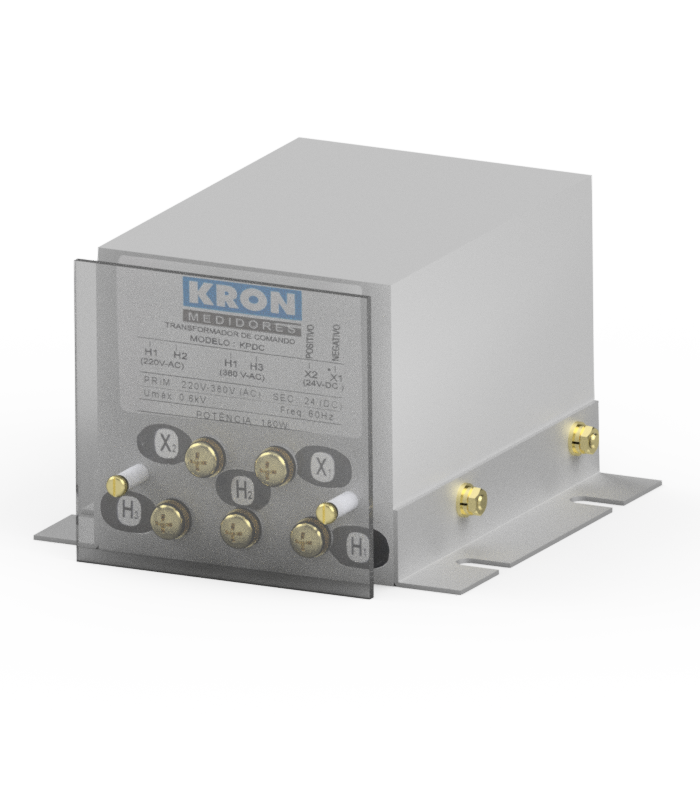

The KPDC is a voltage transformer, varnished, for control in low voltage (0.72kV). Primary Voltage: 110V to 600V. Secondary voltage: 24Vdc according to the model and a Maximum Burden up to 100VA. The product dimension is 105 x 100 x 133mm

For further information, see the product datasheet and Transformers Catalog.

Categories: , , .
