Transformers | Current - Measurement | Epoxy

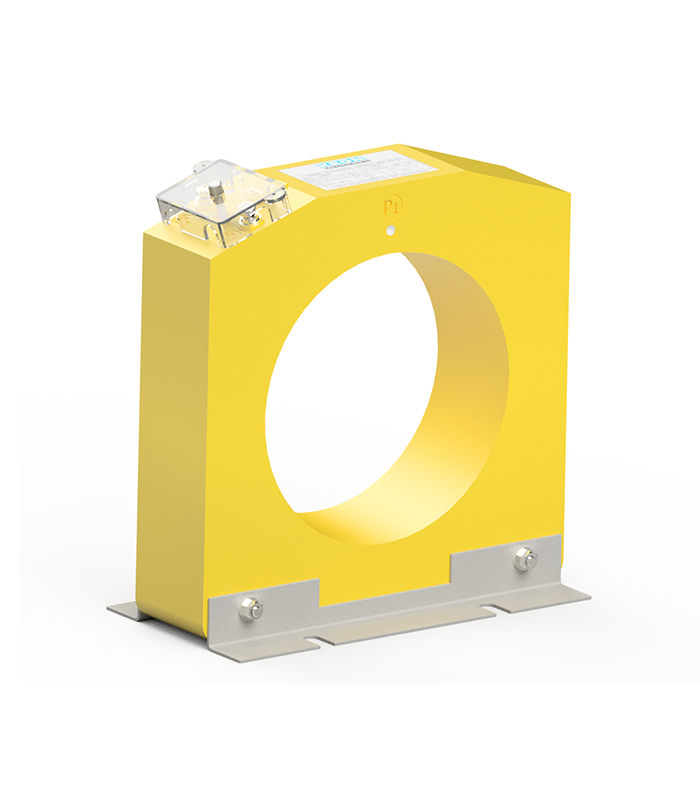

KR 901R

The KR 901R is a current transformer, epoxy window type for measurement in low voltage (0.72kV) systems. Primary current: 800A to 6,000A according to the model. Product dimension: 205 x 205 x 52mm. Window diameter: 134mm. Accuracy class of 0.3% and 0.6% and a maximum Burden of 12.5VA.

For further information, see the product datasheet and Transformers Catalog.

Categories: , , .
Prev
Next
DEMONSTRATIVE VIDEO

What is a Current Transformer? Watch our videos for further explanation of the Kron Current Transformer product line, operation and installation.
