O medidor de energia modelo DRS-210 D é um instrumento destinado à medição de consumo de energia ativa (kWh) de pequenas cargas em aplicações residenciais, comerciais ou industriais.
Power Quality Meter | Light Poles Fix – Class S
AQE 02

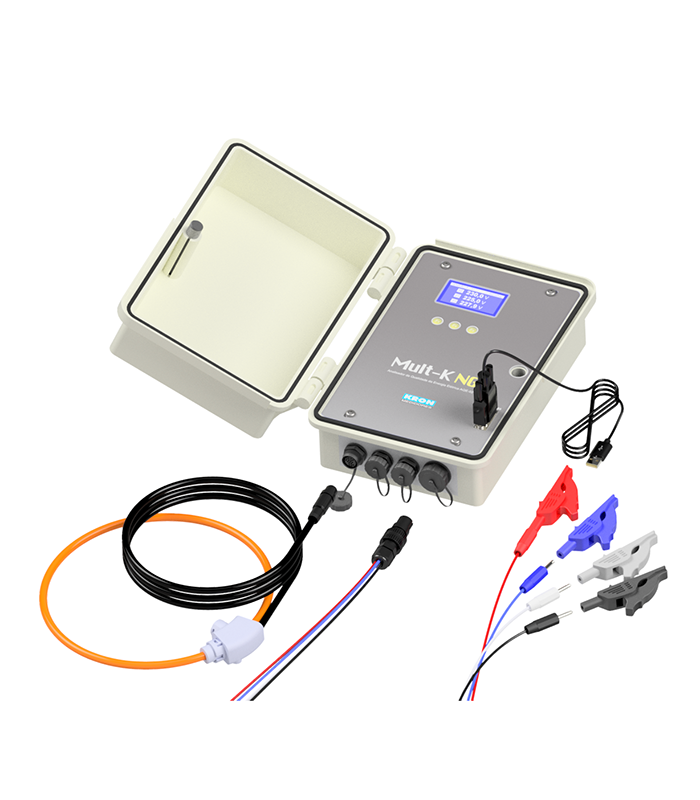

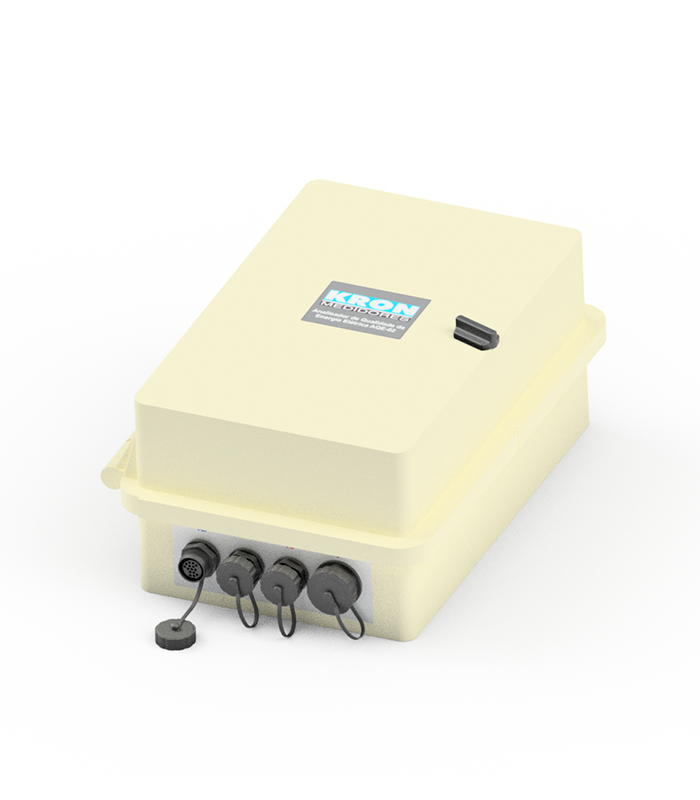

The AQE 02 is a Power Quality Analyzer for power pole fix, that performs measurements according to the IEC61000-4-30 S-Class, IEC61000-4-7 (harmonics) and IEC 61000-4-15 (flicker) standards, and sorts the events according to PRODIST module 8. It allows the measurement of more than 100 electrical parameters in an alternating current (AC) system. With flexible or clamp-type current sensors. The readings of the parameters and events can be performed locally or remotely via RS-485 output (Modbus-RTU protocol) and Bluetooth. It also has data memory for recording the measured parameters and aggregation memory for storing more than 1000 power quality events.
- Power Quality Analyzer - S Class
- Portable
- IEC61000-4-30 S-Class, IEC61000-4-7 and IEC 61000-4-1 (Prodist Module 8)

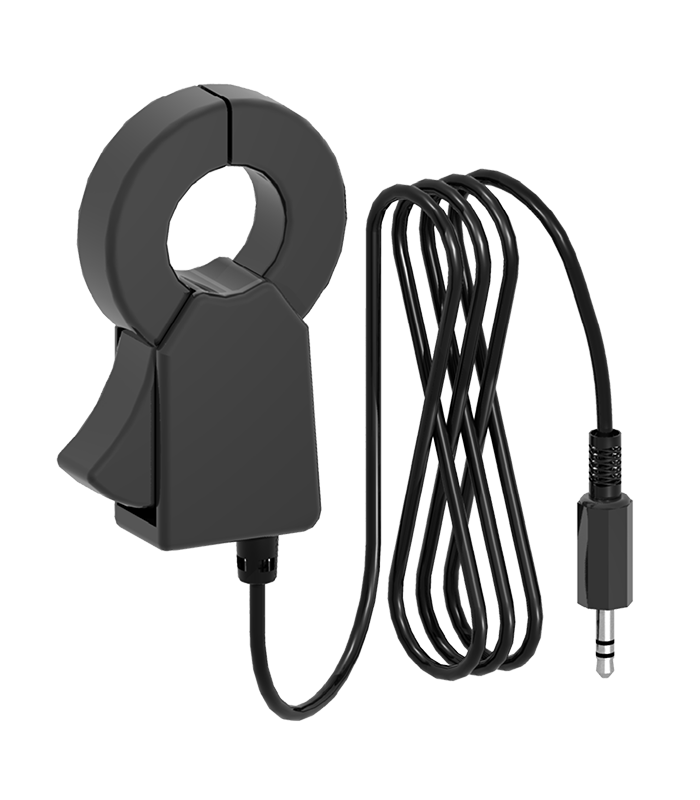

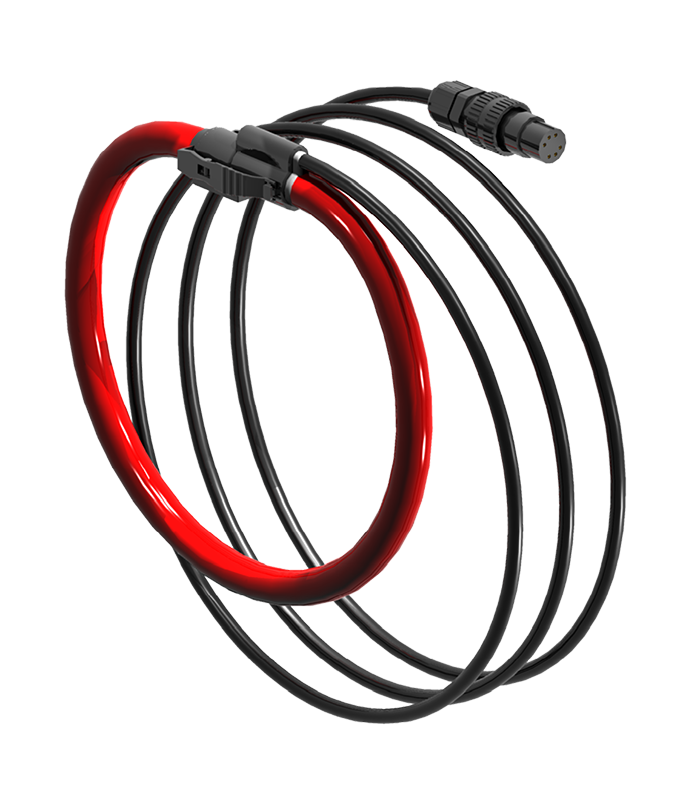

- Flexible or Clamp-type Current Sensors
- Multifunction Energy Meter.
- RS-485/USB output and/or Bluetooth (Modbus-RTU).
- Aggregation Memory
- LCD Display
- Software and MMI (Man Machine Interface) Reading and Configuration
New
- Power Quality Analyzer - S Class
- IEC61000-4-30 S-Class, IEC61000-4-7 and IEC 61000-4-1 (Prodist Module 8)
- Multifunction Energy Meter.
- RS-485 output and/or Bluetooth (Modbus-RTU).
- Ethernet output (Modbus-TCP/IP).
- Aggregation Memory
- LCD Display
- Software and MMI (Man Machine Interface) Reading and Configuration
- Power Quality Analyzer - S Class
- Voltage Campaigns
- Power Pole Fix
- IEC61000-4-30 S-Class, IEC61000-4-7 and IEC 61000-4-1 (Prodist Module 8)
- RS-485/USB output and/or Bluetooth (Modbus-RTU).
- Aggregation Memory
- LCD Display
- Software and MMI (Man Machine Interface) Reading and Configuration
