Transformers | Current - Measurement | Triple

KDT 15

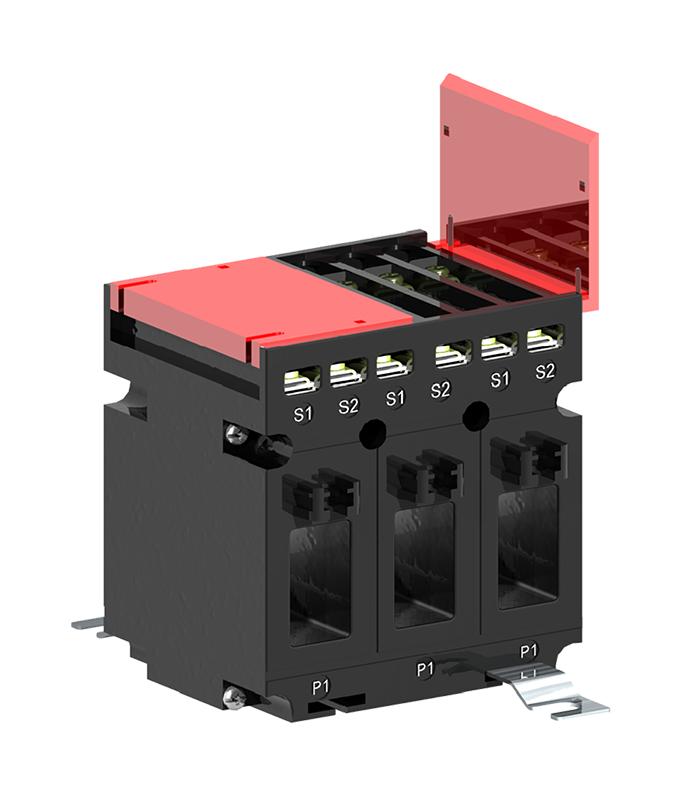

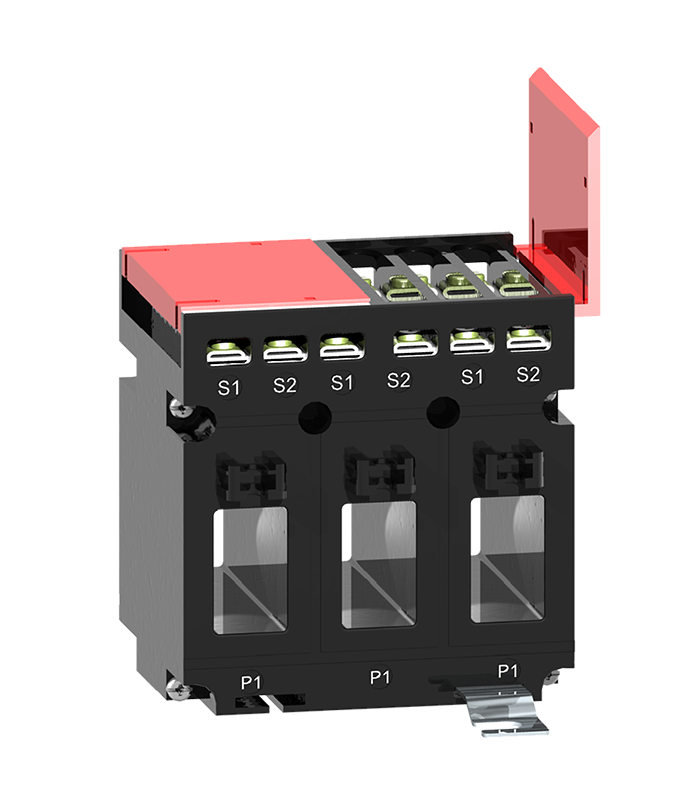

The KDT 15 is a triple current transformer, thermoplastic window type for measurement of three phases in low voltage (0.72kV) system. Primary current: 100A to 160A according to the model. Product dimension: 76.5 x 80 x 60mm. Windows dimensions: 24.5×14.5mm. Accuracy class of 1.0% and a maximum Burden of 1 or 1.5VA.

For further information, see the product datasheet and Transformers Catalog.

Categories: , , .
Prev
Next
DEMONSTRATIVE VIDEO

What is a Current Transformer? Watch our videos for further explanation of the Kron Current Transformer product line, operation and installation.
