Transformers | Current - Measurement | Thermoplastic

KR 127

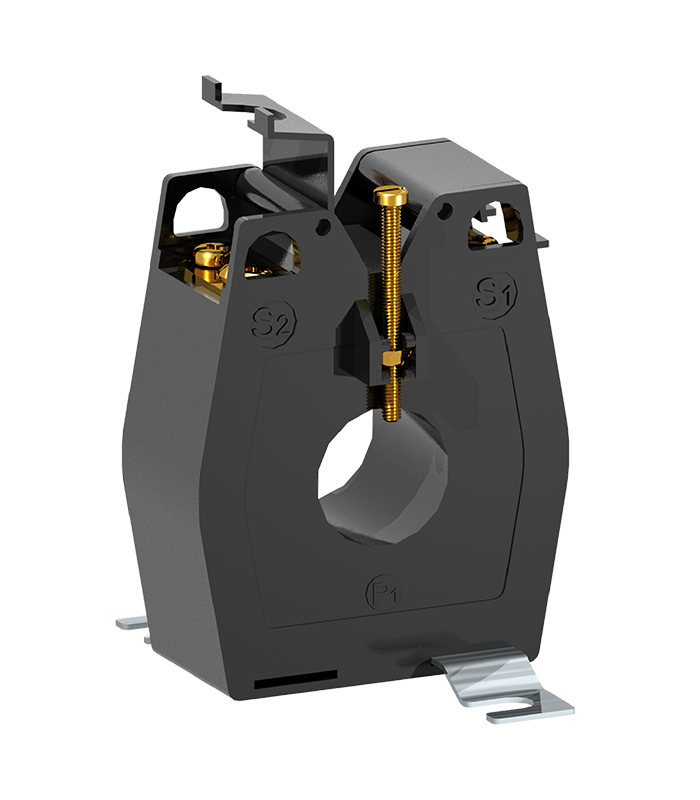

The KR 127 is a current transformer, thermoplastic window type for measurement, for low voltage (0.72kV). Primary current: 50A to 600A according to the model. Product dimension: 67.5 x 82.5 x 30mm. Window diameter: 24mm. Accuracy class of 0.6%, 1.2% or 3.0% and a maximum Burden of 5VA.

For further information, see the product datasheet and Transformers Catalog.

Categories: , , .
Prev
Next
ATRIBUTOS DO PRODUTO
Demonstrative ViDEO

What is a Current Transformer? Watch our videos for further explanation of the Kron Current Transformer product line, operation and installation.
