KR 506

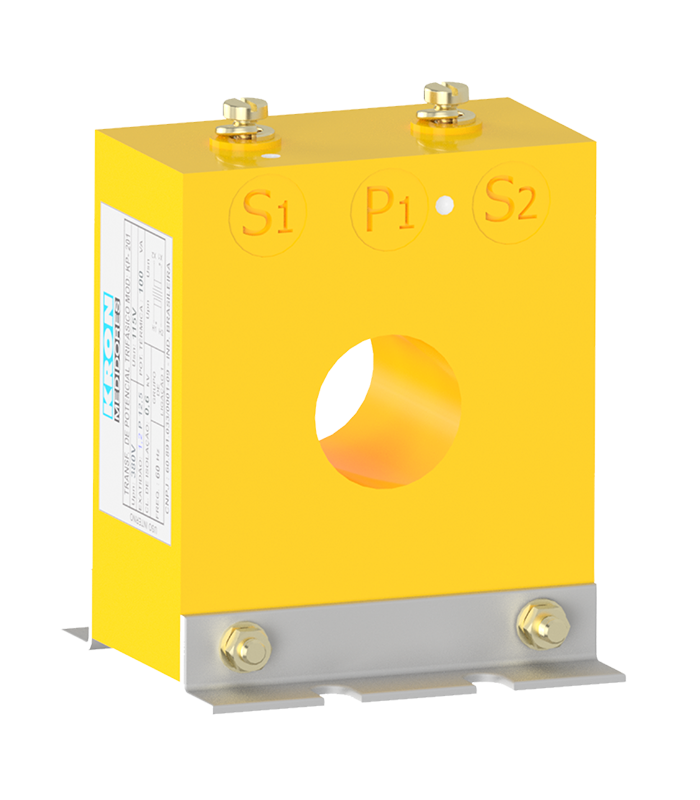

The KR 506 is a current transformer, epoxy window type for measurement, for low voltage (0.72kV). Primary current: 50A to 400A according to the model. Product dimension: 68 x 79 x 35.5mm. Window diameter: 23mm. Accuracy class of 0.6%, 1.2% or 3.0% and a maximum Burden of 5VA.

For further information, see the product datasheet and Transformers Catalog.
