What is a Current Transformer? Watch our videos for further explanation of the Kron Current Transformer product line, operation and installation.
Transformers | Current - Measurement | Thermoplastic

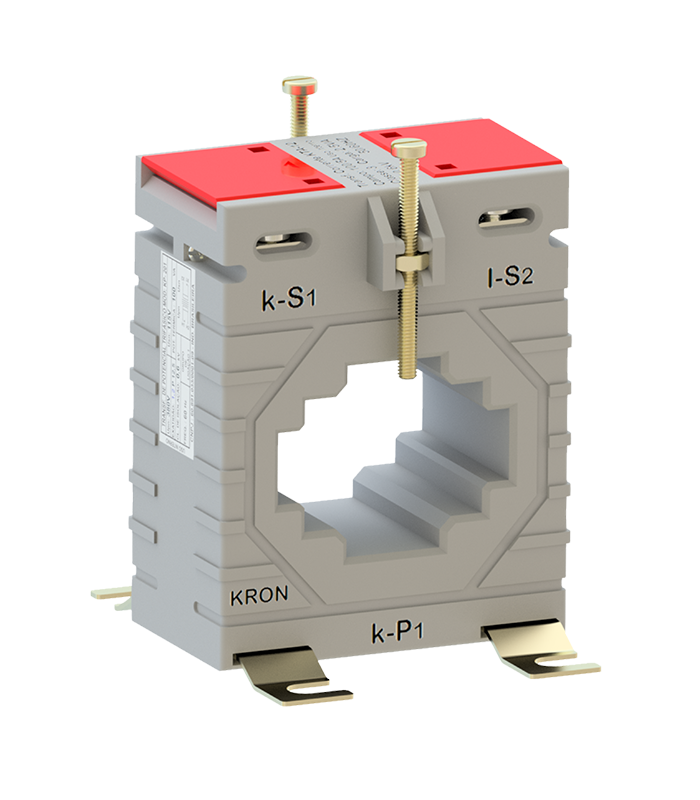

KTA 12
The KTA 12 is a current transformer, thermoplastic window type for measurement, for low voltage (0.72kV). Primary current: 600A to 2,000A according to the model. Product dimension: 104 x 126 x 45mm. Window diameter: 65 mm and windows dimensions: 80×12, 61×31 or 51x51mm. Accuracy class of 0.5% or 1% and a maximum Burden of 20VA.
For further information, see the product datasheet and Transformers Catalog.
- Measurement
- Primary Current: 500 -> 3,000A
- Window Diameter: 70mm
- Window: 81X30mm
- Dimension: 141 x 141.5 x 55mm
- Accuracy Class: 0.6%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 800 -> 4,000A
- Window Diameter: 140mm
- Window: 80X12, 61X31 or 51X51mm
- Dimension: 200 x 239 x 40mm
- Accuracy Class: 0.3%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 50 -> 600A
- Window Diameter: 24mm
- Dimension: 67.5 x 82.5 x 30mm
- Accuracy Class: 0.6% | 1.2% | 3.0%
- Maximum Burden (VA) 5
- Measurement
- Primary Current: 100A -> 400A
- Window Diameter: 24
- Window: 26x13 | 32,5x7
- Dimension: 66.7 x 70 x 23
- Accuracy Class: 0.6% | 1.2% | 3.0%
- Maximum Burden (VA) 2.5
- Measurement
- Primary Current: 100 -> 400A
- Window Diameter: 34mm
- Window: 42X12 and 31X22mm
- Dimension: 68 x 79 x 35mm
- Accuracy Class: 3%, 1.2%, 0.6%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 2,000 -> 3,200A
- Window: 85x55mm
- Dimension: 110 x 150 x 40mm
- Accuracy Class: 0.3%
- Maximum Burden 12.5VA
