O medidor de energia modelo DRS-210 D é um instrumento destinado à medição de consumo de energia ativa (kWh) de pequenas cargas em aplicações residenciais, comerciais ou industriais.
Energy Meter / Multifunction Meters | Measurement Box | IoT and Industry 4.0 Meters

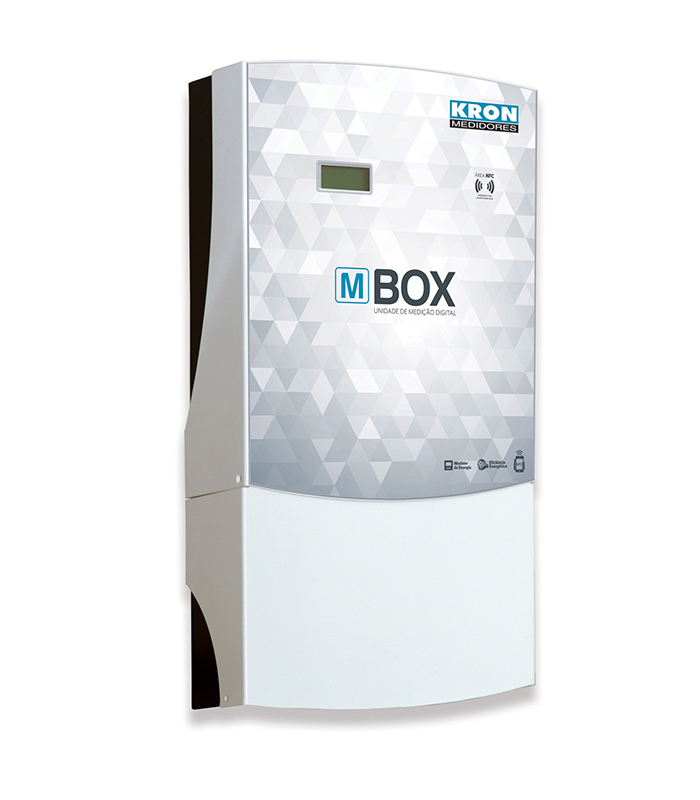

MBox

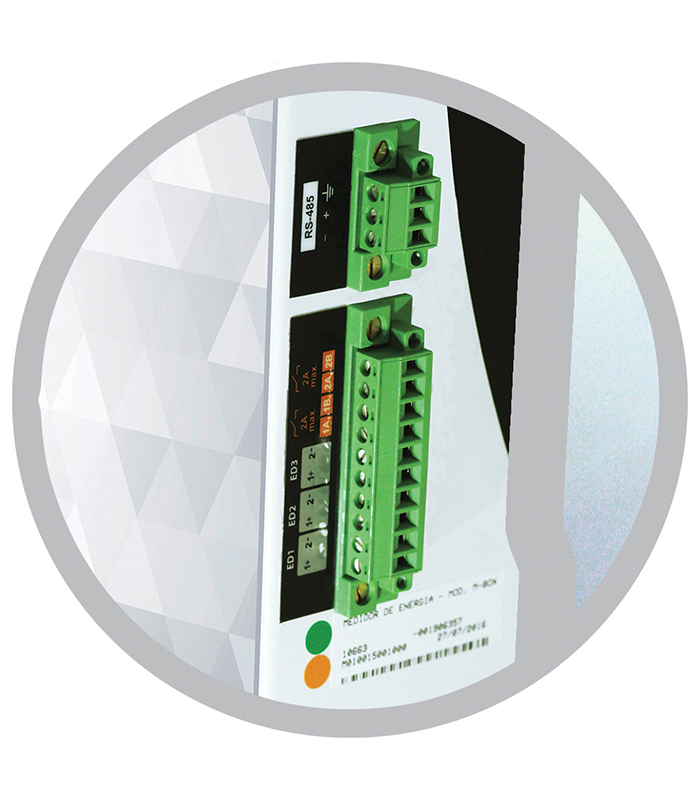

The MBox is a multifunction energy meter Box, with direct current measurement up to 120A, ready to install. With Mass Memory and conceived to measure 44 electrical parameters in AC systems, such as energy consumption, current, voltage and others. RS-485 output with MODBUS-RTU protocol, Bluetooth, Ethernet and Wi-Fi output with MODBUS-TCP/IP, MQTT or BACNet/IP (BACNet/IP only for Ethernet). The MBox is an energy meter for IoT (Internet of Things) and Industry 4.0 application. Digital input to receive signals generated by other resources’ meters/sensors, like water, gas or oil meters and digital outputs (relay) for remote commands (ON/OFF), Analog and PT-100 input (temperature).
- Multifunction and Consumption Energy Meter
- Mass Memory
- RS-485 (Modbus-RTU Protocol)
- Ethernet (Modbus-TCP/IP)
- LCD Screen
- Software and MMI (Man Machine Interface) Reading and Configuration
- Multifunction and Consumption Energy Meter
- IoT and Industry 4.0 application
- Wi-Fi (Modbus-TCP/IP and MQTT), LoRa (LoRaWan) and RS-485 (Modbus-RTU).
- Split-Core Current Transformer with RJ connection (Plug&Play)
- FRAM Memory
- Digital Inputs and Outputs.
- Software and APP for Reading and Configuration
New
- Multifunction and Consumption Energy Meter
- IoT and Industry 4.0 application
- Wi-Fi (Modbus-TCP/IP and MQTT), LoRa (LoRaWan) and RS-485 (Modbus-RTU).
- LoRa (LoRaWAN or private).
- Split-Core Current Transformer with RJ connection (Plug&Play)
- FRAM Memory
- Digital Inputs and Outputs.
- Software and APP for Reading and Configuration
- Versions with or without display
- Multifunction and Consumption Energy Meter
- Two relay output (Alarms)
- RS-485 output (Modbus-RTU)
- LCD Display.
- Software and MMI (Man Machine Interface) Reading and Configuration
New
- Multifunction and Consumption Energy Meter
- Direct current measurement up to 120A or with Current Transformer.
- Mass Memory
- RS-485 (Modbus-RTU Protocol)
- LoRa (LoRaWAN or Private communication)
- Ethernet and/or Wi-Fi (Modbus-TCP/IP, MQTT or BACNet/IP Protocols)
- IoT and Industry 4.0 application
- Digital Input and Output
- Software and MMI (Man Machine Interface) Reading and Configuration
- MMI (Man Machine Interface) Reading
- Multifunction and Consumption Energy Meter
- Mass Memory
- RS-485 (Modbus-RTU Protocol)
- Time of the Day Measurement (Peak and Off-Peak Energy Measurements - E-13 Version)
- Digital Input and Output (E-13 Version)
- Software and MMI (Man Machine Interface) Reading and Configuration
