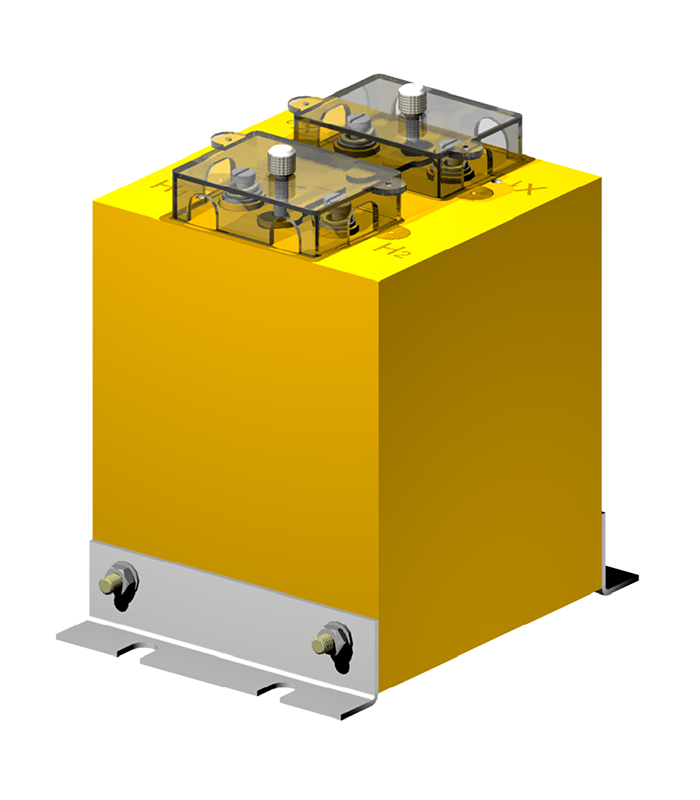

KP 101

The KP 101 is a voltage transformer, epoxy, for measurement in low voltage (0.72kV). Primary Voltage: 110V, 220V, 380V, or 480V. Secondary voltage: 110V, 115V or 220V according to the model and Max Thermal OutPut: 100VA. Product dimension: 104 x 96 x 96mm. Accuracy class of 0.6% or 1.2% and a maximum Burden of 12,5 or 25VA.

For further information, see the product datasheet and Transformers Catalog.

Categories: , , .
