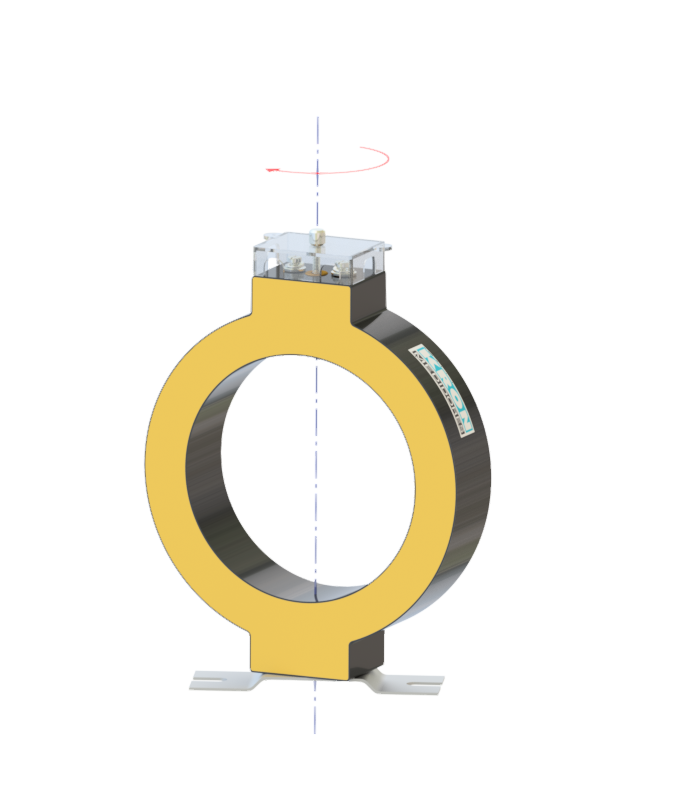

KR 120

The KR 120 is a current transformer, epoxy window type for measurement, for low voltage (0.72kV). Primary current: 1,000A to 2,500A according to the model. Product dimension: 165 x 202 x 40mm. Window diameter: 120mm. Accuracy class of 0.3% and a maximum Burden of 12.5VA.

For further information, see the product datasheet and Transformers Catalog.
