KR 4535

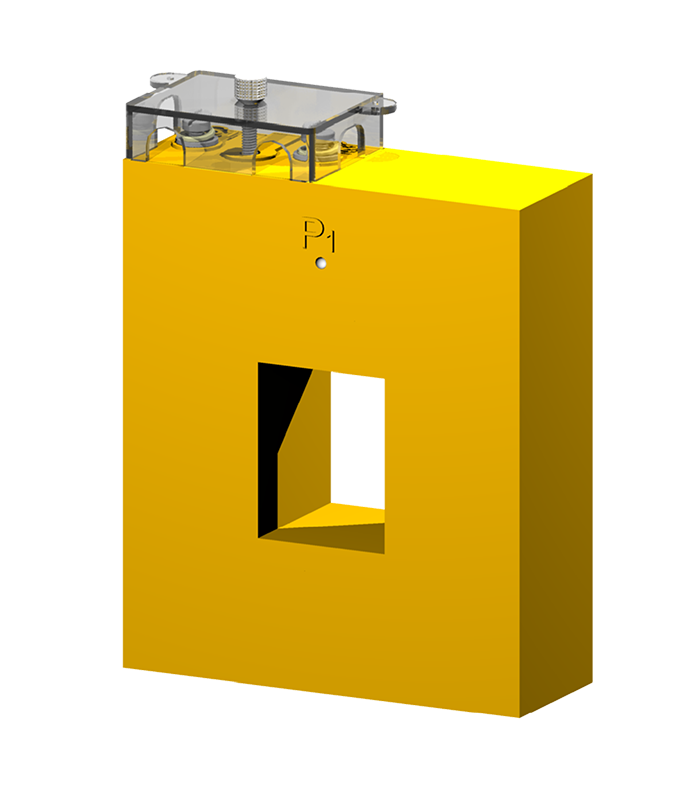

The KR 4535 is a current transformer, epoxy window type for measurement, for low voltage (0.72kV). Primary current: 250A to 1,600A according to the model. Product dimension: 110 x 150 x 40mm. Window dimension: 45x35mm. Accuracy class of 0.6% and a maximum Burden of 12.5VA.

For further information, see the product datasheet and Transformers Catalog.

Categories: , , .
Prev
Next
DEMONSTRATIVE VIDEO

What is a Current Transformer? Watch our videos for further explanation of the Kron Current Transformer product line, operation and installation.
