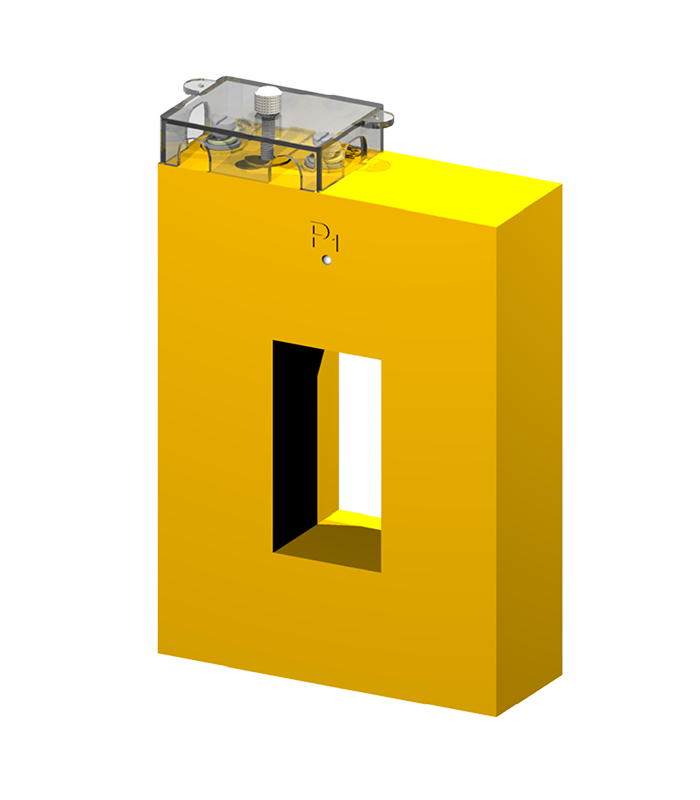

KR 6535
The KR 6535 is a current transformer, epoxy window type for measurement, for low voltage (0.72kV). Primary current: 1,000A to 2,000A according to the model. Product dimension: 110 x 150 x 40mm. Window dimensions: 65x35mm. Accuracy class of 0.3% and a maximum Burden of 12.5VA.
For further information, see the product datasheet and Transformers Catalog.
- Measurement
- Primary Current: 250 -> 1,600A
- Window: 45x35mm
- Dimension: 110 x 150 x 40mm
- Accuracy Class: 0.6%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 50 -> 150A
- Window Diameter: 34mm
- Window: 80X12, 61X31 or 51X51mm
- Dimension: 70 x 75 x 25mm
- Accuracy Class: 1.2%
- Maximum Burden 2.5VA
- Measurement
- Primary Current: 50 -> 800A
- Window Diameter: 24mm or 30mm
- Window: 31X11 and 41X11mm
- Dimension: 77.5 x 92 x 50.5mm
- Accuracy Class: 1.2%, 0.6%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 600 -> 2.000A
- Window Diameter: 65mm
- Window: 80X12, 61X31 or 51X51mm
- Dimension: 104 x 126 x 45mm
- Accuracy Class: 0,5%, 1%
- Maximum Burden 20VA
- Measurement
- Primary Current: 1,000 -> 2,500A
- Window: 85x35mm
- Dimension: 110 x 150 x 40mm
- Accuracy Class: 0.3%
- Maximum Burden 12.5VA
- Measurement
- Primary Current: 2,000 -> 3,200A
- Window: 85x55mm
- Dimension: 110 x 150 x 40mm
- Accuracy Class: 0.3%
- Maximum Burden 12.5VA
