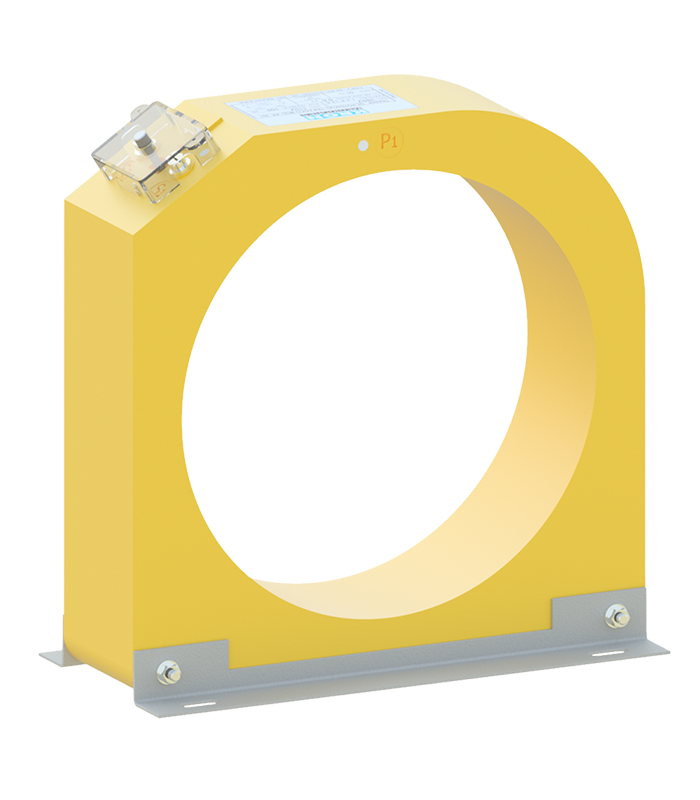

KR 974R

The KR 974R is a current transformer, epoxy window type for measurement, for low voltage (0.72kV). Primary current: 1,000A to 6,000A according to the model. Product dimension: 255 x 255 x 70mm. Window diameter: 206mm. Accuracy class of 0.3% or 0.6% and a maximum Burden of 12.5VA.

For further information, see the product datasheet and Transformers Catalog.

.
