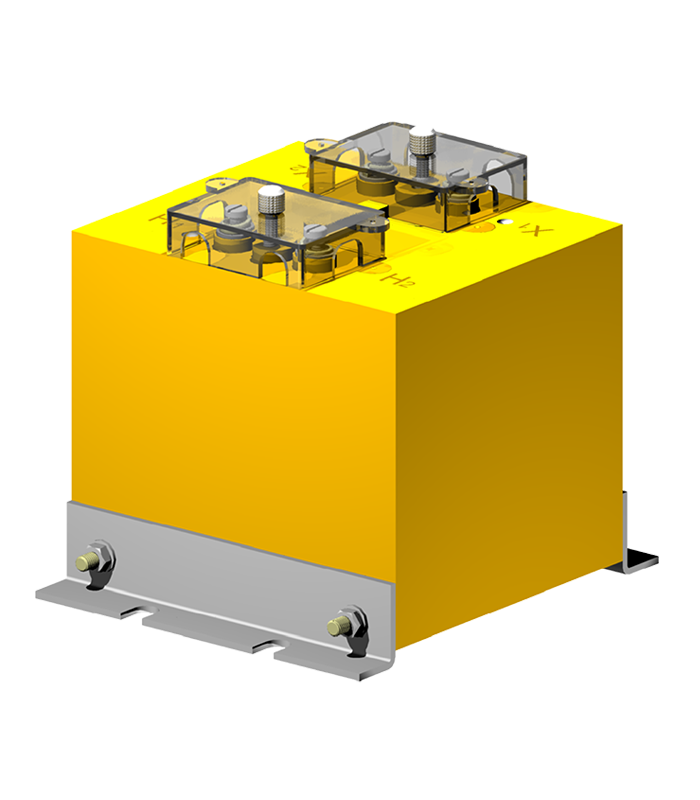

KP 51

The KP 51 is a voltage transformer, epoxy, for measurement in low voltage (0.72kV). Primary Voltage: 110V, 220V, 380V, or 480V. Secondary voltage: 110V, 115V or 220V according to the model and Max Thermal OutPut 50VA. Product dimension: 82 x 80 x 75mm. Accuracy class of 1.2% and a maximum Burden of 5VA.

For further information, see the product datasheet and Transformers Catalog.
