Transformers | Voltage Transformer | Control

KPTCS

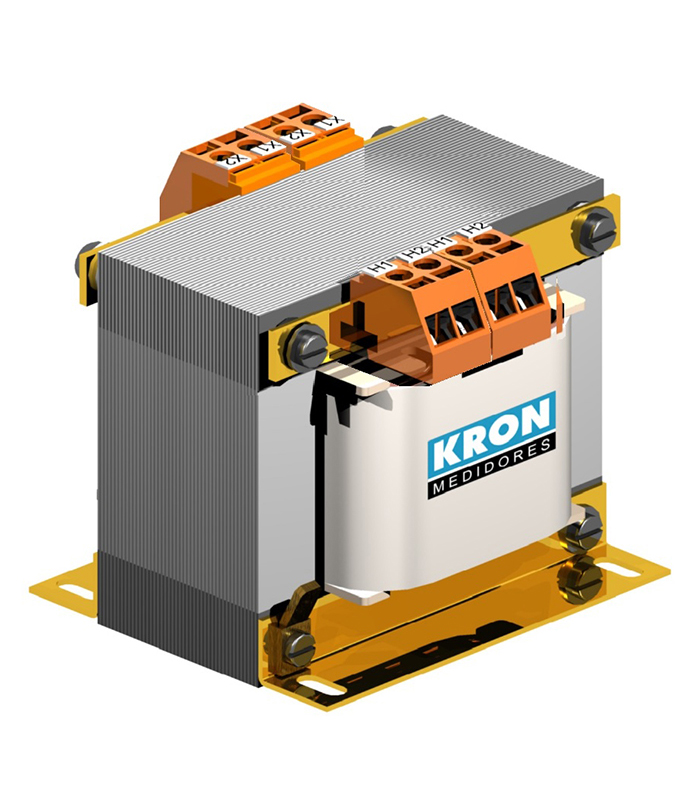

The KPTCS is a voltage transformer, varnished, for control in low voltage (0.72kV). Primary Voltage: 110V to 600V. Secondary voltage: 110V to 600V according to the model. Maximum Burden up to 2,500VA.The product dimension, will variety, according to the Maximum Burden.

For further information, see the product datasheet and Transformers Catalog.

Categories: , , .
